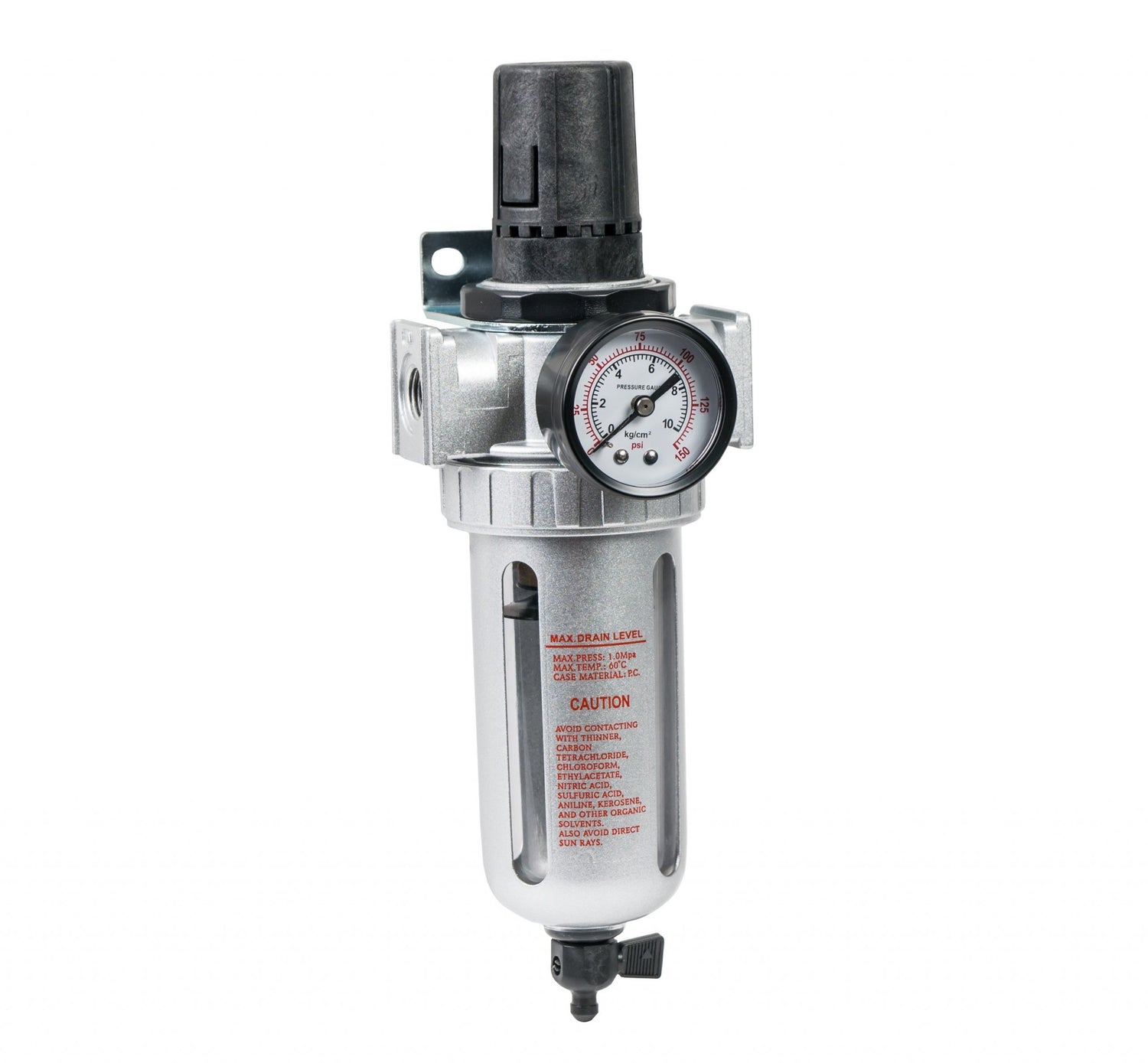

2Spray Fr Series Filter Regulator Fr202

The FR Series filter / regulator is designed for use in general industrial applications where the filtering of compressed air is required. The filter / regulator is a two part system. The 5 micron filter is designed to remove most of the liquid and solid particles from the air supply. The self-relieving pressure regulator is used to adjust the outlet pressure between 0 - 150psi.

Specifications FR202

• Max. Temperature: 60° C / 140° F
• Max Input Pressure: 215psi
• Max Output Pressure: 150psi
• Air Inlet / Outlet: 1/4”
• Gauge Ports: 1/8”
• Max Flow Rates: 60cfm / 1750 l/min
