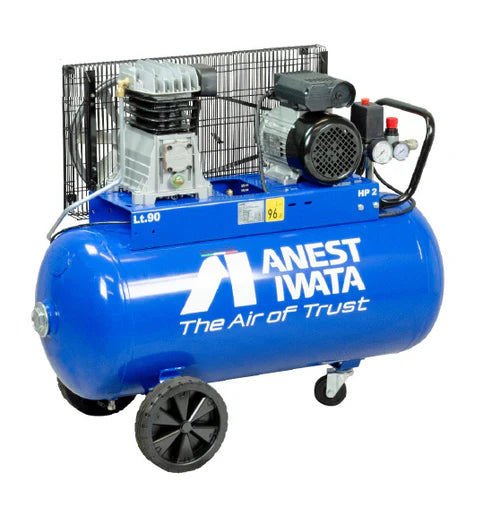

Iwata Air Compressor NB30C/90 3HP 90L Tank 390LPM 13CFM 145psi

Reciprocating piston compressors are available as Single Stage or Two Stage units. In Single Stage, the air is drawn into a cylinder and compressed in a single piston stroke and can reach pressures of up to 150 PSI.

Two stage compressors compress air in two steps. In the first step, air is compressed to a certain level then transferred to another chamber and compressed again to its final PSI. In the process of transfer to the second chamber the air is often cooled through an inter-cooler. This makes it possible to achieve higher pressures, commonly up to 200 PSI.

Cylinder lubrication is related to the type and pressure of the gas being compressed. In some cases the frame bearings and cylinder use the same oil for lubrication, but in higher pressure and temperature applications a synthetic oil of higher viscosity might be used to lubricate the cylinders.

Anest Iwata Air Compressor Features:

MODEL NB30C/90
Heavy Duty Cast Iron Pump Unit
Large 90 Litre Air Receiver
Slow RPM’s
Low Noise
European Built
Quality Components
Belt Drive
Heavy Duty Pressure Switch
Positive Non Return Valve Unloader
3hp 15amp Motor
390lpm Free air delivery
High Out Put 145psi/10bar
1Year Auswide Warranty
Made in Italy
